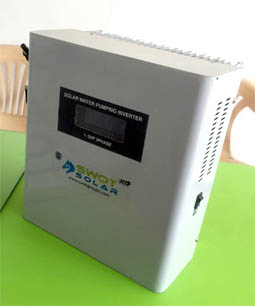

S-Aqua MAX 5 1hp - 5 hp | 3-Phase (440/240 V)
Highlights
- 30% better performance with MAX torque Technology
- 1hp-5hp in a single unit
- Built-in MPPT, MEPT and VFD
- Battery less system
- Built-in lightning arrestor, dry run, reverse polarity and short circuit protections
- Works even during cloudy and rainy conditions
- 2-years warranty
Technical Specification:
| Power Rating |
1-5 hp |
| Input Voltage Voc |
150-550 VDC |
| Input Voltage Vmp |
120-480 VDC |
| Output Voltage |
250-440 VAC (3-phase) |
| Dimension ( L x B x H ) |
42 x 36 x 48 cm |
| Connector at DC Input |
MC4 |
| Pump |
Any 3-phasse AC Pump |
